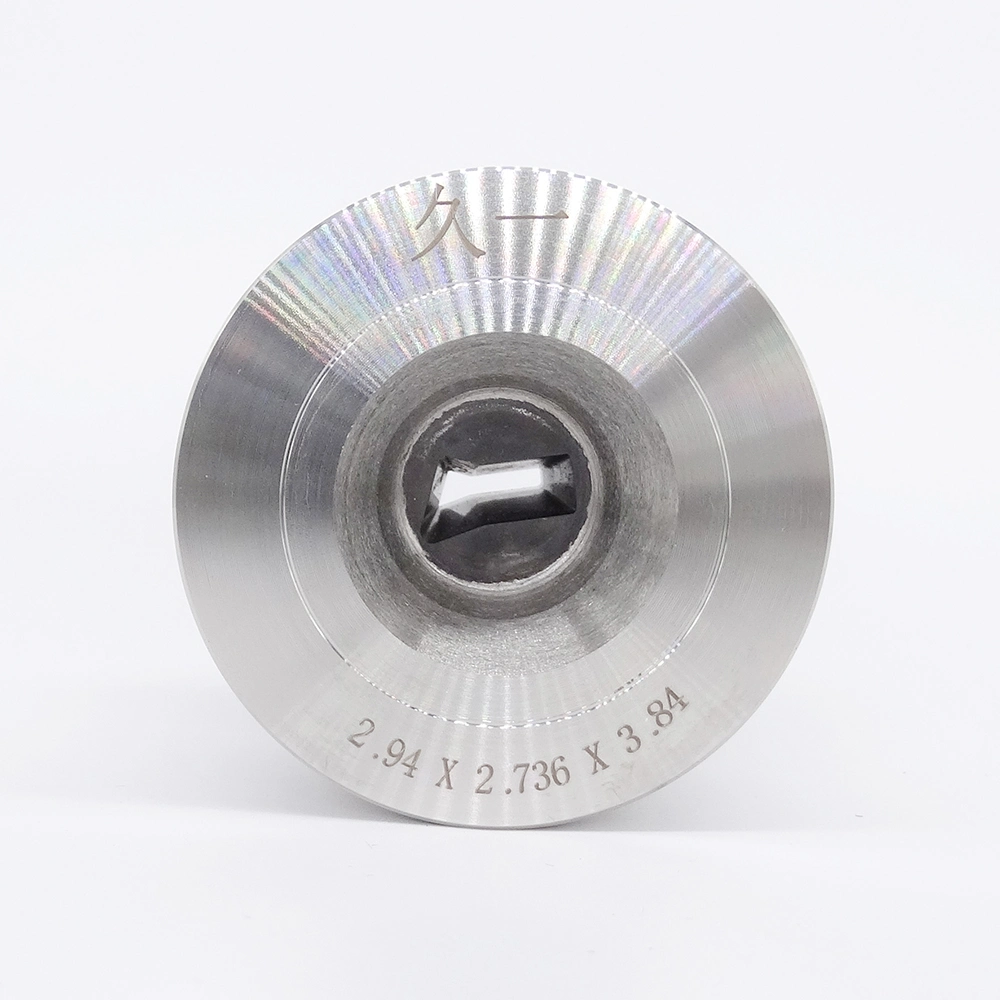

| Key words | PCD wire drawing die , PCD die , PCD wire die , PCD diamond drawing die |
| Hole | 0.02 - 30mm |
| Hole shape | Round , square , Hexagon ,flat and so on |
| Case diameter | 10mm - 100mm |
| Case thickenss | 5mm - 70mm |
| Application | For all kinds of steel wire ; For copper wire ; For all kinds of hard & soft wire . |
| Standard Tolerance | 0.001mm |
| Bond | Cobalt based , silicon based , MONO , ND , tungsten carbide |
| Grit | 1um - 3um - 5um - 10um - 25um - 50um |
| Temperature resistant | 650 degree, 1000 degree , 2000degree |
| Quality Guarantee | Quality problem , we will exchange new one for you . |
| Note | 1.Mount at temperautres not exceeding 650 degree . 2.Maximu recommend bearing diameter for "soft" nonferrous wire . " Hard " wire diameter normally should not exceed 65% of this diameter . |
| Packing | plastic bag & carton |
| Shipping ways | TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING |
| Shipping time | 5-7 work days |
| Payment terms | 100% prepayment by T/T , western union , Paypal , Credit |
| Factoty | ZHECHENG HONGXIANG |
| Website | hnhongxiang.en.made-in-china.com |
| Factory address | Shangqiu city , Henan province , China |
| Factory history | 26 years |
| Factory main products | 1. PCD die blanks & PCD die 2. PDC cutter for oil drilling bit 3. PCD cutting tools 4. Diamond powder |
Processing :
- aw material checking , grit ,size , surface, sample testing
- Inner assembly
- External assembly
- Press by Cubic press machine with high temperature & high pressure (first testing)
- Grinding processing
- Laser cutting
- Clean , testing quality , get into stock
Note :
- Mounted at temperatures not exceeding 650°.
- Maximum recommend bearing diameter for "soft" nonferrous wire . "Hard" wire diameter normally should not exceed 65% of this diameter
All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.
| ZHECHENG HONGXIANG SUPERHARD MATERIAL CO.,LTD | ||||||||
| BWG Specification ---wire drawing die details | ||||||||
| BWG | inches | mm | BWG | inches | mm | BWG | inches | mm |
| 5/0 | 0.5 | 12.7 | 10 | 0.134 | 3.404 | 24 | 0.022 | 0.559 |
| 4/0 | 0.454 | 11.532 | 11 | 0.12 | 3.048 | 25 | 0.02 | 0.508 |
| 3/0 | 0.425 | 10.795 | 12 | 0.109 | 2.769 | 26 | 0.018 | 0.457 |
| 2/0 | 0.38 | 9.652 | 13 | 0.095 | 2.413 | 27 | 0.016 | 0.406 |
| 0 | 0.34 | 8.636 | 14 | 0.083 | 2.108 | 28 | 0.014 | 0.356 |
| 1 | 0.3 | 7.62 | 15 | 0.072 | 1.829 | 29 | 0.013 | 0.33 |
| 2 | 0.284 | 7.214 | 16 | 0.065 | 1.651 | 30 | 0.012 | 0.305 |
| 3 | 0.259 | 6.579 | 17 | 0.058 | 1.473 | 31 | 0.01 | 0.245 |
| 4 | 0.238 | 6.045 | 18 | 0.049 | 1.245 | 32 | 0.009 | 0.229 |
| 5 | 0.22 | 5.588 | 19 | 0.042 | 1.067 | 33 | 0.008 | 0.203 |
| 6 | 0.203 | 5.165 | 20 | 0.035 | 0.889 | 34 | 0.007 | 0.178 |
| 7 | 0.18 | 4.572 | 21 | 0.032 | 0.813 | 35 | 0.005 | 0.127 |
| 8 | 0.165 | 4.191 | 22 | 0.028 | 0.711 | 36 | 0.004 | 0.102 |
| 9 | 0.148 | 3.759 | 23 | 0.025 | 0.635 | |||
WANKE HONGXIANG teach you how to choose good PCD die blanks ?
For the factory which produce PCD wire drawing dies , they always wish their PCD die quality it the best and get more and more good feedback from their customers . But for choosing PCD die blanks , which aspect should we notice ?
- Do you want PCD die blanks with higher temperature or low temperature ? PCD dies blank has two types : 650 degree blanks & 1000 degree blanks . Their difference is in metal bond. 650 degree PCD blanks bond is cobalt-based . 1000 degree PCD blanks bond is silicon-based . Generally speaking , cobalt-based PCD die blanks quality & surface drawing is much better than silicon-based PCD die blanks . If you don't have any requirement in process temperature , we will advice you choose cobalt-based PCD die blanks , its quality is better .
- In addition ,when we choose PCD die blanks ,don't think we just choose best quality PCD die blanks , then we don't worry the finished PCD die quality . It's wrong !!! As you know , different factories have their feature in PCD die blanks processing to clear their quality grade .So , when you get the PCD die blanks to process , advice you to talk to your supplier about the process details to avoid some problem which affect your dies quality .
- At the same time , we should also take PCD die usage into account .If your die usage is for soft wire , so you could choose unsupported PCD die blanks , because it is not very hard when drawing wires . If your die usage is for hard wire , and your die hole is a little bigger , you could choose supported PCD die blanks to avoid break when drawing . If you don't consider compressive strength of PCD die , if drawing machine speed is a little fast , it can make PCD die break , and make the whole wires break , can not be used .
Does my share help you now ? ^_^
