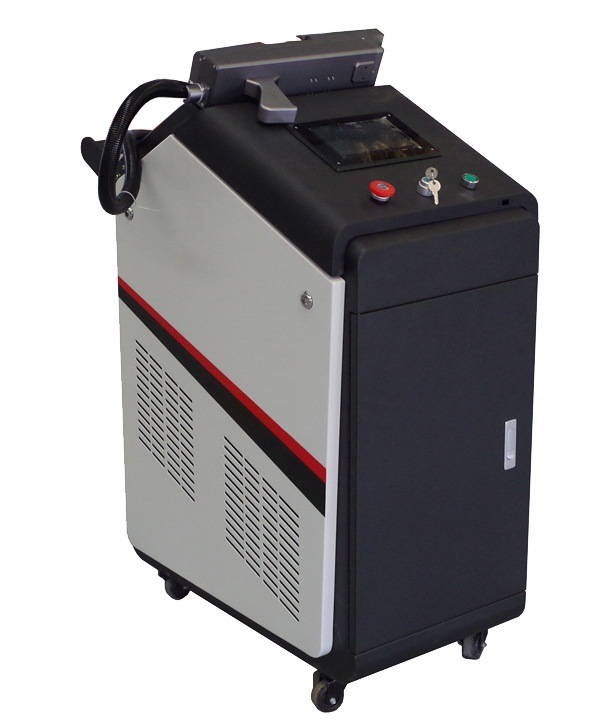

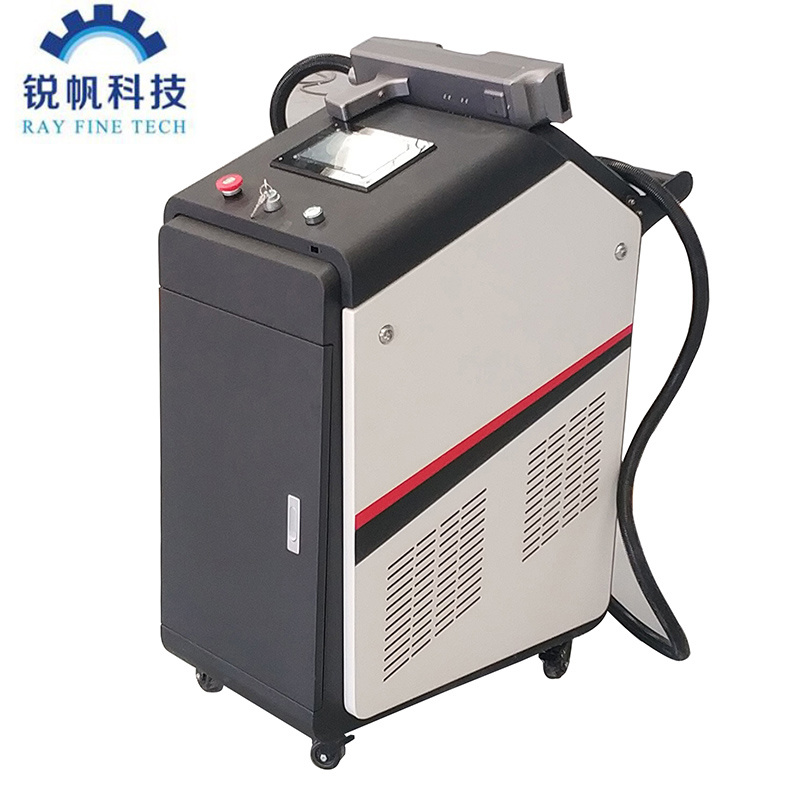

| JPT M7 mopa 100w laser cleaning machine | |
 |  |
| Machine advantages --The machine has the characteristics of high cleaning efficiency and convenient movement. --The machine uses JPT M7 laser source with pulse width of 2-500ns and single point energy of 1.5mj, which can provide you with stronger energy and enhance the laser intensity. --We have Raycus/Max/IPG/JPT laser source for your choose. Main features 1--Domestic high-power fiber laser laser cleaning machine 2--Non-contact cleaning without damaging the part matrix 3--Precise cleaning, accurate position, accurate size, selective cleaning 4--Does not require any chemical cleaning fluid, no consumables, safety and environmental protection 5--Simple operation, power-on, automatic cleaning with hand or with robot 6--Very high cleaning effect, save time 7--Laser cleaning system is stable and requires little maintenance | |
 | Machine power | 100w 200w |
| Laser source | JPT M7 mopa | |
| Pulse width | 2--500ns | |
| Scan width | 10--60nm | |
| Cooling way | Air cooling | |
| Voltage | 110v/220v |
| Introduction to main parts of the machine |
 JPT M7 laser source --Frequency:1--4000KHZ,It can provide you with more cleaning effects by changing the frequency values. --Pulse width: 2-500ns, the higher the pulse width, the stronger the energy, it can provide you with more powerful cleaning effect. |
 Laser cleaning gun --Very convenient and easy to use. --The cable length of laser cleaning gun is 5m.We can also lengthen 8m and 10m, but please note that the longer the cable, the weaker the laser intensity. Laser cleaning gun size  |
 Machine control system --You can enter your own parameters to achieve different cleaning effects. --The machine has two laser cleaning modes: "ring" and "square". --In short, in the "ring" mode, the laser will condense into a point, which is specially used to clean some impurities that are very difficult to clean, or to clean some corner impurities of objects. --In short, in the "square" mode,It is mainly used for plane cleaning, which you often see in the video. --The control system is a touch controlled screen. |
| Machine cleaning sample |
 1. Metal or glass surface coating removal, rapid removal of paint . 2. Quick rust removal and various oxides 3. Remove grease, resin, gum, dust, stains, and produce residue . 4. Roughening of metal surface 5. Before welding or bonding, remove paint, rust, grease, weld oxide, residue treatment 6. Mold cleaning, such as tire mold, electronic mold, food mold 7. After the production of precision parts, oil removal 8. Quick cleaning of nuclear power unit maintenance 9. Aerospace weapons, processes for the manufacture or maintenance of ships, removal of paint, rust removal 10. Metal surface cleaning in narrow space 11. Cultural relics cleaning, rock cleaning, exterior cleaning of buildings. |
| Our services |
| 1.--Laser source warranty is 2 years,the warranty period of other parts is 1 year. |
| 2--.If the parts of the machine are damaged, we will send you new parts by international express, but you need to mail back the old parts. |
| 3.--We have a special video tutorial to guide you how to use the machine. |
| 4.--If you encounter any problem in use, you can contact us at any time. We will help you solve the problem as soon as possible. We will help you solve the problem through video, what'sup and email. |
| Main products of our company | |
 | Portable split fiber laser marking machine |
 | Portable split Co2 laser marking machine |
If you are interested in our products, please leave a message below and I will reply to you in time.
